The Physics of Freeze Ruptures in North Texas Homes
Understanding why frozen pipes burst reveals why professional emergency intervention is critical during winter storms:
Volumetric Expansion and Trapped Hydrostatic Columns
Water is unique: as it transitions from liquid to solid ice at 32 degrees Fahrenheit, its volume increases by approximately nine percent. The ice plug adheres to the inner pipe wall. As ice expands, it pushes unfrozen water against closed faucets and check valves, creating a closed hydraulic chamber where pressure escalates beyond 2,500 PSI until the pipe wall splits.
Attic Manifold Vulnerability in Allen Architecture
Most Allen homes built since 1990 route major hot and cold distribution manifolds across unconditioned attic floor joists. Even with blown fiberglass insulation, wind-driven drafts entering through ridge vents and soffit baffles rapidly freeze exposed water lines.
Outdoor Hose Bib Freeze-Back Ruptures
Leaving garden hoses connected to exterior spigots during sub-freezing weather traps water inside the sillcock barrel. Ice expands backward past the exterior brick veneer into the heated wall envelope, bursting the copper pipe inside wall framing.
Thaw-Triggered Flood Dynamics

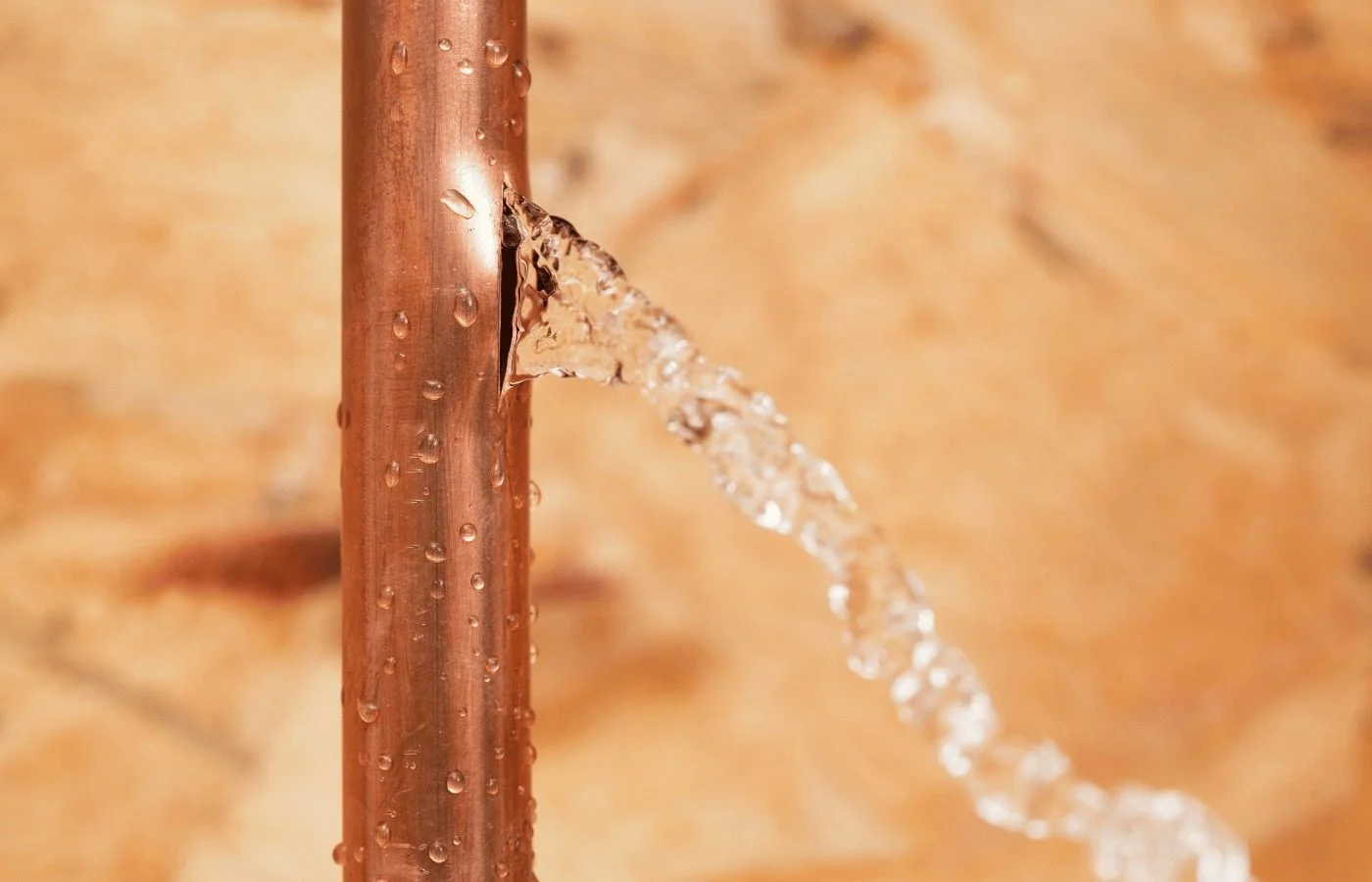

Pipes split while frozen, but the leak remains sealed by solid ice. Once ambient temperatures climb above freezing or home heating warms the attic, the ice plug melts, instantly discharging up to 15 to 20 gallons of water per minute through the split pipe.
Freeze Failure Vulnerability by Plumbing Pipe Material
| Pipe Material | Burst Threshold & Freeze Behavior | Failure Mode | Emergency Repair Solution |
|---|---|---|---|
| Type M Rigid Copper | Low elasticity; ruptures at ~1,800 to 2,200 PSI | Longitudinal split along manufacturing seam | Cut out split; install ProPress coupling or PEX-a bridge |
| Schedule 40 CPVC | Extremely brittle below 32 deg F; zero elasticity | Shatters into jagged shards at joints and elbows | Replace entire brittle manifold with flexible PEX-a |
| PEX-b (Crimp PEX) | Moderate elasticity; brass/plastic fittings fail | Brass fittings crack; crimp rings slip off barbs | Replace with ASTM F1960 cold-expansion PEX-a system |
| Uponor PEX-a | High elasticity; expands up to 3x diameter safely | Extremely freeze-resistant; rarely bursts | Thaw line safely; inspect connection integrity |
Our Certified Freeze Rupture Restoration Protocol
Phase 1: Emergency Remote Throttling & Fast Response
Call our 24/7 Allen dispatch desk at (972) 472-8198 for immediate guidance on isolating your curb stop valve before catastrophic thaw flooding occurs.
Phase 2: Thermal Imaging & Ice Dam Mapping
We scan attic runs, crawl spaces, and wall chases using FLIR infrared cameras to identify frozen line segments, hidden ice blocks, and active moisture breaches behind sheetrock.
Phase 3: Controlled Non-Flame Thermal Thawing
We deploy controlled, flame-free thermal heating blankets, induction heaters, and warm air exchangers to safely melt ice dams without risking attic timber or insulation ignition.
Phase 4: Flame-Free Hydraulic Repair & Manifold Upgrades
We excise ruptured pipe sections and replace damaged distribution blocks using commercial Viega ProPress fittings or Uponor PEX-a cold-expansion systems with enhanced thermal insulation.
Phase 5: Hydrostatic Pressure Certification & Insulation Hardening
We perform a full nitrogen or hydrostatic decay test at 80 PSI to confirm no secondary hairline fractures exist before reinstalling closed-cell elastomeric pipe insulation.
Serving All Allen Subdivisions During Winter Freezes
During major winter weather events, our emergency fleet dispatches across Twin Creeks, Watters Crossing, Starcreek, Suncreek, Bethany Lakes, Montgomery Farm, Shadow Lakes, Ridgeview Crossing, and Glendover Park, ensuring rapid assistance when North Texas freezes strike.
Frequently Asked Questions
Why did my pipe start leaking only after temperatures warmed up above freezing?
Ice acts as an impermeable physical plug while temperatures stay below 32 degrees Fahrenheit. The pipe wall split during the freezing event, but water cannot escape until the ice plug thaws. When the thaw occurs, pressurized water flows unrestricted through the crack.
Can I thaw a frozen pipe with an open flame torch?
Never use an open flame torch. Open flames ignite dry attic timbers, vaporize paper backing on insulation, and cause rapid localized thermal expansion that can shatter plumbing pipes. We utilize calibrated thermal blankets and electrical induction heaters.
What is the best pipe material to prevent freeze bursts in Allen attics?
Uponor PEX-a (cross-linked polyethylene) is the gold standard. PEX-a has thermal shape memory and can expand up to three times its normal diameter to accommodate freezing water without splitting.
Should I leave my faucets dripping during an Allen freeze warning?
Yes. A slow, steady drip from both hot and cold lines keeps water moving and relieves internal hydrostatic pressure if an ice blockage begins to form.
How can I shut off water if the outdoor curb stop is frozen over?
Our technicians carry specialized curb box de-icing tools and thermal injectors to free frozen city meter boxes and turn off the curb stop immediately.
24/7 Local Emergency Service & Dispatch Information
When a water pipe breaks, delayed action escalates property damage and structural restoration costs. Contact our local Allen plumbing dispatch team immediately for certified pipe isolation, acoustic diagnostic locating, and permanent mechanical repair.
-
